Create reinforced green parking, grass driveways and emergency access with recycled HDPE grass pavers. Open cells support root growth, while secure interlocks and integrated anchors help keep panels connected. Stock for quick despatch, with delivery and trained installation support across Africa.
Technical Specification of BERA® Grass Fix Eco+ - Grass Parking Pavers and Driveway Grids

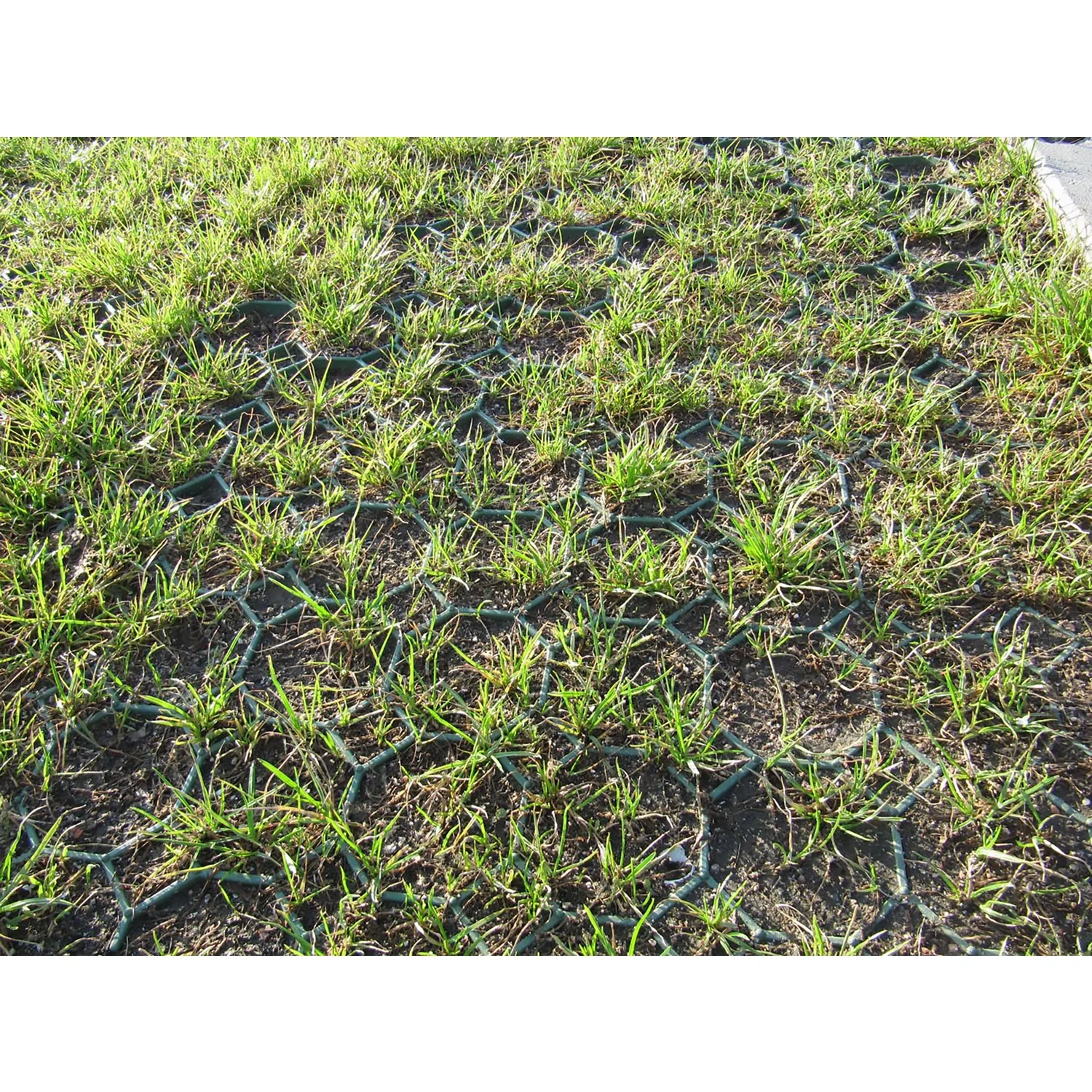

BERA® Grass Fix Eco+ is a recycled HDPE grass reinforcement grid for homeowners, developers and landscape contractors creating green parking, overflow car parks, driveways and access routes. Its open cells and lateral openings support grass roots while the grid reinforces the surface over a prepared foundation.
Unreinforced lawns can rut and become muddy under traffic. The honeycomb structure, secure interlocks and underside anchors help stabilise a grassed surface. HDPE has lower thermal conductivity than concrete grass pavers, which BERA positions as more plant-friendly. Healthy grass still needs suitable growing medium, a locally appropriate species, water and maintenance.
The 550 x 380 x 31 mm panel is 51 mm high including anchors, covers 0.21 m² and weighs approximately 0.9 kg. Coverage is 4.76 panels/m², with 140 panels or 29.4 m² per pallet. Empty-panel strength is 170 t/m² under EN 124-1:2017. This test value is not a permissible vehicle load; the foundation, infill and drainage determine traffic suitability.
Grass Fix Eco+ has a published EPD, with REACH, ISO 9001 and ISO 14001 listed by BERA. It is an open grid without an attached Typar membrane. Geosynthetics Africa can supply separate foundation geotextile, edging and grids in a turnkey package including stock despatch, Africa-wide logistics, trained installation support and QA/QC. BERA's 47+ country presence describes the manufacturer, rather than installations of every model.
Typical Values for PERMEABLE PAVING SYSTEMS
Properties & Dimensions
| Property | Test Method | Value |
|---|---|---|
| Material | - | 100% recycled HDPE |
| Manufacturing standards | - | REACH · ISO 9001 · ISO 14001 · EPD |
| Colours | - | Green or grey |
| Cell structure | - | Honeycomb |
| Sheet size | - | 55 × 38 × 3.1 cm |
| Surface per sheet | - | 0.21 m² |
| Quantity per m² | - | 4.76 sheets |
| Pallet quantity | - | 140 sheets / 29.4 m² |
| Weight per sheet | - | 0.9 kg |
| Weight per m² | - | 4.3 kg |
| Compressive strength - empty | EN 124-1:2017 | 170 T/m² |
| Certification | - | Published EPD; REACH, ISO 9001 and ISO 14001 manufacturing; DIN 14090 listed as application standard |
Popular Catalogue Items
BERA® Grass Fix Eco+ - Grass Paver and HDPE Grass Reinforcement Grid
170 T/m² empty · 0.21 m² per sheet · 4.76 sheets/m²
BERA® Eco Edge Garden Edging - Flexible Recycled Plastic Lawn Edging, 10 m Roll
10 m lengths, 14 cm depth - flexible enough to form curvesRelated Product Groups
Three Questions To Ask Before You Order
1.Are grass pavers suitable for parking and driveways?
2.What does 170 t/m² strength mean?
3.Which grass and infill should I use?
4.Is geotextile attached to Grass Fix Eco+?
5.Can I install it on a slope?
6.When can cars use the grass surface?
7.Do you supply and install across Africa?
Specification For The Design, Installation Of BERA® Grass Fix Eco+ - Grass Parking Pavers and Driveway Grids
BERA® Grass Fix Eco+ installation requires no specialist tools. The critical requirements are correct foundation preparation, proper edging and allowing grass to fully establish before vehicle use.
1. Foundation A 20–40 cm compacted crushed stone and gravel base depending on expected load. For vehicle use: place a 300–500 g/m² non-woven geotextile over the compacted layer to prevent instability.
2. Base Preparation Place a 5–7 cm levelled layer of mixed sand and crushed stone over the geotextile. Level above 3°C. Install edging - BERA® Edging Systems (available on request) include stakes for quick installation. Leave a minimum 5 cm gap between sheets and all fixed elements (walls, edges, obstacles) for thermal expansion.
3. Sheet Laying Once foundation, base and edging are complete, lay sheets by hand in stretcher bond pattern - no tools required. Pallets of 140 sheets (29.4 m²) can be positioned directly beside the working area. Integrated anchors provide additional stability. Use extra anchoring for slopes. Trim with a handsaw or circular saw if required. Light compaction may be applied after installation.
4. Grass Establishment Fill honeycomb cells with a 40/30/30% mix of sand, peat and soil. Water thoroughly before sowing. Use drought-resistant grass suited to local climate. Apply fertiliser and water regularly to ensure even establishment. Allow grass to establish through several cuts before opening to vehicle traffic. Expect natural soil settling of approximately 1 cm - this is normal and leaves space for healthy grass growth. Maintain with regular watering, fertilising and cutting.
