BERA Gravel Fix® Pro - Gravel Driveway and Parking Grids
Stable gravel driveways, parking and garden paths with factory-attached DuPont™ Typar® geotextile. Reduce loose-gravel movement with a permeable BERA system, backed by stock for quick despatch, Africa-wide delivery and trained installation support.
Technical Specification of BERA Gravel Fix® Pro - Gravel Driveway and Parking Grids

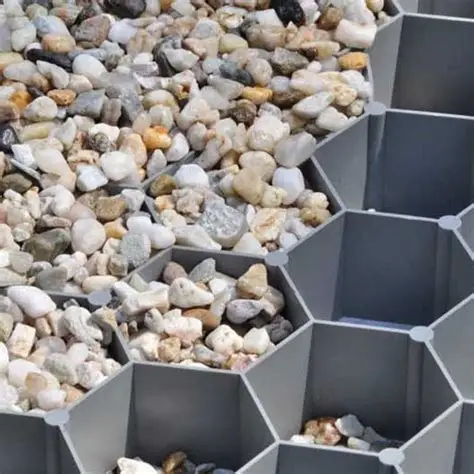

BERA Gravel Fix® Pro is a European-made polypropylene honeycomb grid for homeowners, developers and landscapers creating stable gravel driveways, car parks, paths and terraces. The cells help confine gravel and reduce scatter, rutting and sinking compared with uncontained loose stone. BERA documents Gravel Fix installations in 47+ countries across five continents.
The 32 mm grid arrives with 68 g/m² DuPont™ Typar® geotextile thermally attached without glue. Overlapping membrane lips help separate and retain gravel while allowing water through and reducing weeds. Compared with a grid supplied without fabric, the combined panel reduces separate membrane handling. Foundation geotextile, edging and infill remain part of the site-specific system.
Manufacturer-reported vertical strength is 120 t/m² empty in white, 95 t/m² in grey/black and above 450 t/m² installed, depending on gravel. These are panel properties, not permissible vehicle loads. Base preparation, drainage, gravel grading and expected traffic must be considered together. Use well-compacted 3-6 mm gravel for wheelchairs, pushchairs and high heels.
Published EPDs for white and grey Gravel Fix provide independently verified life-cycle environmental data. UV and frost resistance and recyclability support durable landscape specifications. Permeable construction can contribute to sustainable drainage systems (SuDS) when the foundation and soil or drainage outlet are designed for rainfall. Geosynthetics Africa offers stock, cross-border logistics, trained installation support and turnkey installation with documented QA/QC.
Typical Values for PERMEABLE PAVING SYSTEMS
Properties & Dimensions
| Property | Test Method | Value |
|---|---|---|
| Material | - | 100% recycled or pure polypropylene · 100% recyclable |
| Cell structure | - | Hexagonal · 42 mm diameter |
| Sheet dimensions | - | 1176 × 764 × 32 mm |
| Installed surface per sheet | - | 0.9 m² |
| Wall thickness (tapered) | - | 0.8 mm top - 1.4 mm base |
| Gravel fill volume | - | 50 l/m²; approximately 75 kg/m²; gravel 3-16 mm |
| Vertical strength, empty | Not stated in brochure | 120 t/m² white; 95 t/m² grey/black |
| Vertical strength - installed | - | >450 T/m² depending on gravel/split |
| Drainage (geotextile) | EN ISO 11058 | 180 l/(m².s) |
| Geotextile | - | DuPont™ Typar® · 68 g/m² |
| Geotextile durability | Typargeo Report 070 | Predicted >100 years in natural soils below 25°C; geotextile only |
| Certification | - | White EPD-IES-0016490; grey EPD-IES-0016488. Brochure validity to 2029-09-18, subject to continued registration |
| Manufacturing standards | - | Manufacturer lists ISO 9001, 16949 Lloyds, REACH and EPD |
Popular Catalogue Items
BERA Gravel Fix® Pro - Gravel Driveway Stabilisation Grid with Typar Geotextile
32 mm; 0.9 m² Pro; factory-attached Typar; colour-specific empty strength
BERA® Eco Edge Garden Edging - Flexible Recycled Plastic Lawn Edging, 10 m Roll
10 m roll; 140 mm high; 12 kgRelated Product Groups
Three Questions To Ask Before You Order
1.Does the gravel grid include geotextile?
2.Can it be used for gravel driveways and car parks?
3.Which gravel size and quantity should I use?
4.What foundation is required?
5.Can I use Gravel Fix Pro on a slope?
6.Will it stop flooding or make my site SuDS compliant?
7.Is stock available and can you install across Africa?
Specification For The Design, Installation Of BERA Gravel Fix® Pro - Gravel Driveway and Parking Grids
Prepare and compact a foundation appropriate to soil, drainage and traffic. BERA's general guide uses 100 mm bedding for pedestrian paths, or 150-250 mm crushed-stone foundation plus 40-60 mm bedding for vehicles; review these indicative depths for the site. Fit suitable edging, level the surface and remove sharp debris. Lay panels so the extended Typar lips overlap beneath adjacent sheets, then trim around obstacles. Fill with 3-16 mm gravel to 15-20 mm above the cells; use well-compacted 3-6 mm gravel for accessible paths. Rake evenly and maintain coverage by topping up. Our turnkey installation scope includes agreed foundation checks, material quantities, laying, finish inspection and QA/QC records. Source: BERA SC-GFP-EN-03-25.
